Do you need a door that stops the noise from entering a room or venue?
Varikust® acoustic doors are multi-rebated doors with an activated sealing mechanism between the bottom of the door leaf and the threshold, effectively stopping noise from getting through the usual gaps around a door. With a sound insulation ranging from DnTw = 32dB to 52dB (the updated acoustic sound level testing method is an in-situ measurement of the Standardised Level Difference according to ISO 162283-1 2014, analysed according to weighted Standardised Level Difference, DnTw, according to ISO 717-1) and a max height of 5m and width of 4.8m, your specific requirements can be designed and manufactured by Aluglass Bautech.
Uncertain about different Acoustic Ratings and what they mean? Read all about it in our blog “Understanding Acoustic Ratings: STC vs Rw vs DnTw”
- Varikust® ACOUSTIC doors are multi-rebated doors with an activated sealing mechanism between the bottom of the door leaf and the threshold
- Easy operation
- Effective sealing mechanism
- This system allows for uninterrupted floor finish
- Sound Insulation doors ranging DnTw = 32dB to 55dB
- Complementary product to the Variflex® system and GF Serene
- Available as gas / dustproof fire doors fitted with escape gear
Varikust VK47
- Single acoustic door – maximum: 900mm wide x 2400mm high
- Double acoustic doors – maximum: 1600mm wide x 2400mm high
- 32 and 37dB acoustic insulation rating
- Variety of finishes including wood veneers, MDF and MDF spraypainted.
Varikust VK62
- Single acoustic doors – maximum: 1050mm wide x 2700mm high
- Double acoustic doors – maximum: 1800mm wide x 2700mm high
- 35, 43 and 45dB acoustic rating
- also available as an acoustic FIRE door
Varikust VK62 Glass
- Single acoustic doors – maximum: 1050mm wide x 2700mm high
- Double acoustic doors – maximum: 1800mm wide x 2700mm high
- 35, 43 and 45dB acoustic rating
- 100mm melawood finished frame – colour to specification
- Glass insert panel- TSG and laminated glass combination to acoustic specification
- Optional finish at an additional cost: 5mm anodised aluminium lip visible with 100mm backpainted glass border
Varikust VK105
- Single acoustic door – maximum: 1200mm wide x 2400mm wide
- Double acoustic door – maximum: 2700mm wide x 3000mm high
- 45 to 55dB acoustic ratings
- also available as an acoustic FIRE door
We have made and installed even larger versions of the VK105 up to 4.8m wide x 6m high.
- Sasani Studios
- Sasol
- Deutsche Bank
- AECOM
- Atlas Studios
- CNBC
- IDC Auditorium

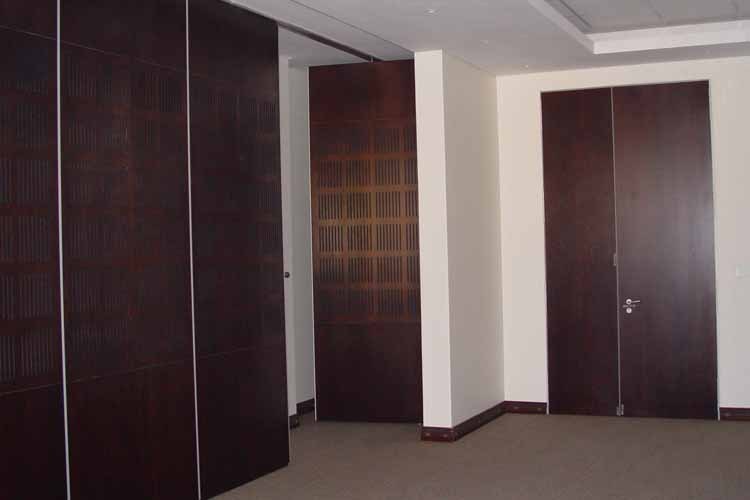

- Microsoft
- Monte Casino
- MTN 14th Ave
- SABC
- Sandton Convention Centre
- Magistrates Courts across Botswana

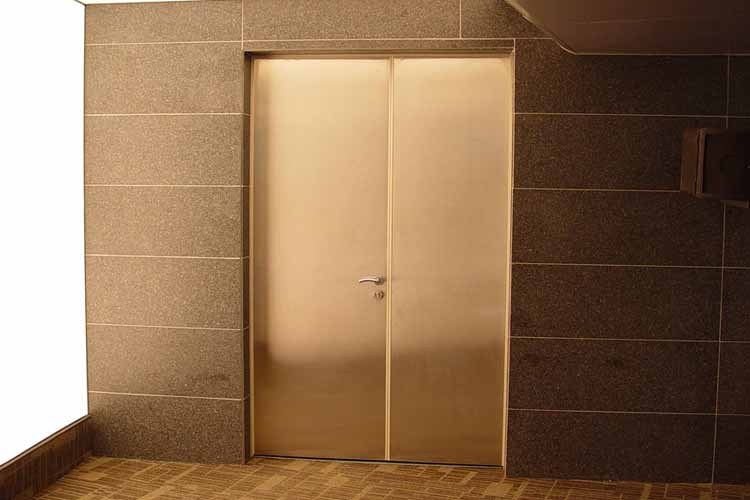

- Turbine Square
- Standard Bank Rosebank
- Alexander Forbes Sandton
- Skyrink Film and Recording Studios Johannesburg
- Liberty Office Refurbishment Bruma
- Hill on Empire (tiso blackstar group)
- Broadhurst Magistrate Court Botswana
- Majantsipe Project Managers Klerksdorp

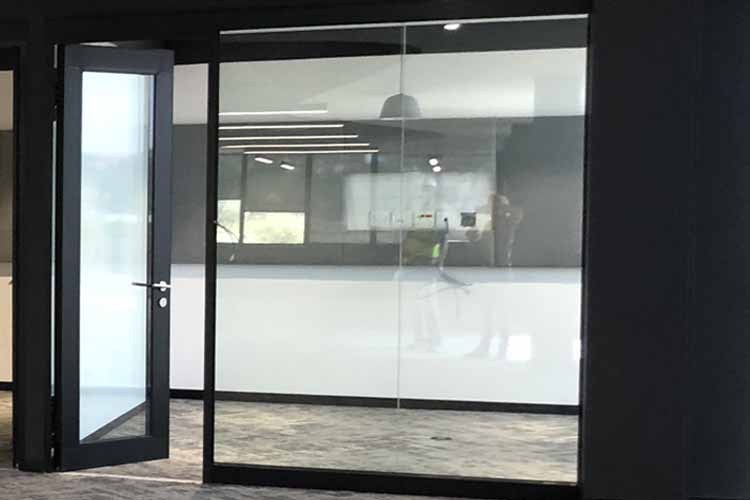

- Accenture Waterfall Park Johannesburg
- North West Province Legislature
- BP South Africa Oxford Park
- SABC Nelspruit Drama Studios
- Tshwane House

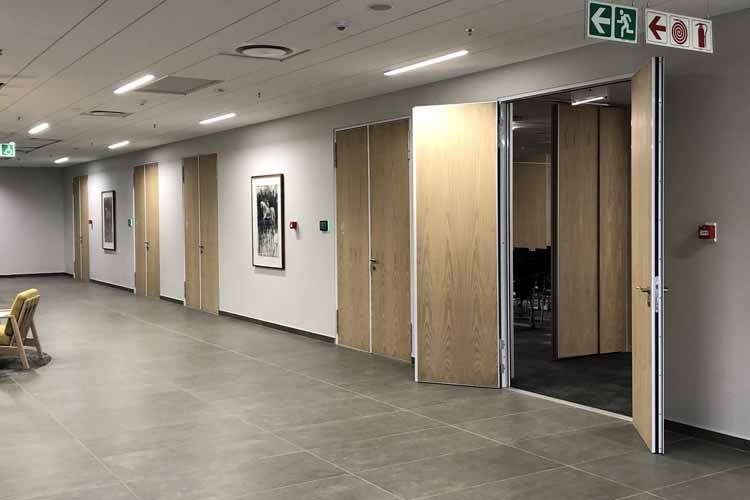

- Exxaro Head Office Centurion

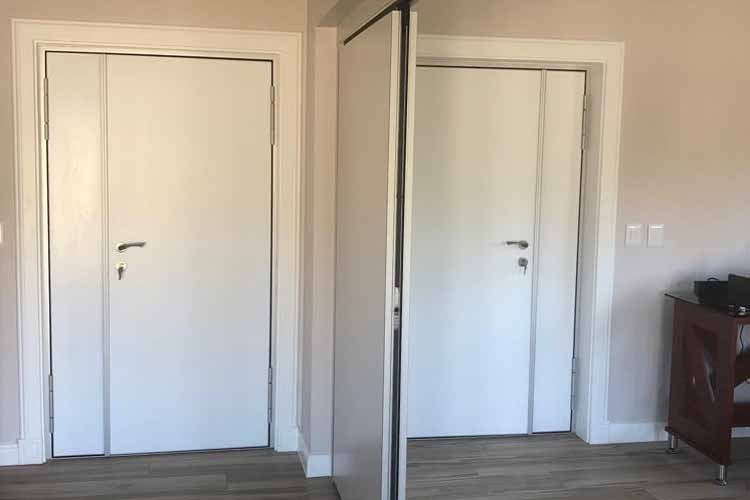

- Varikust® At Private Residence at Blair Atholl

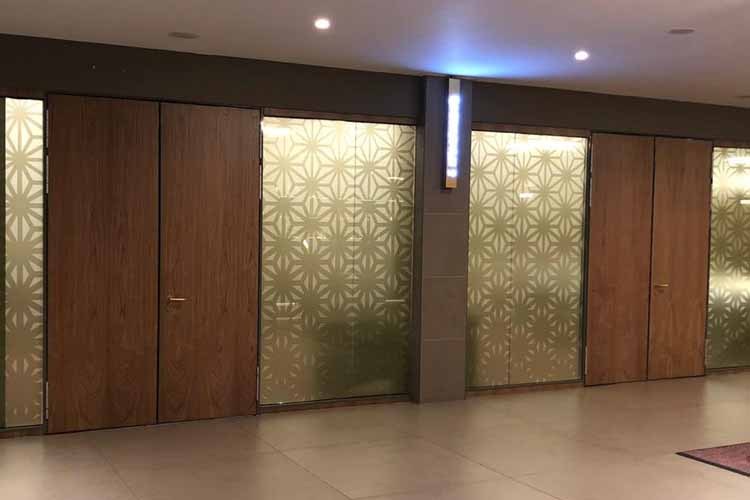

- Avani Hotel and Casino Windhoek Namibia
- University of the Free State

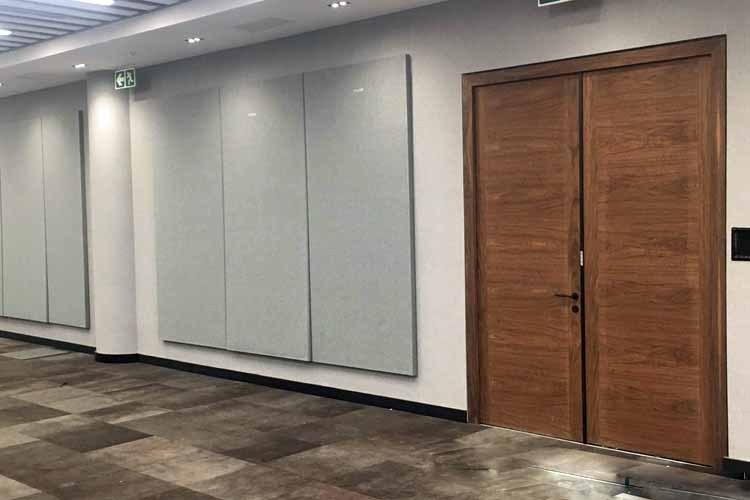

- Investec – 100 Grayston Drive Sandton
and many more…..
- Entrance doors to Hotel rooms
- Radio & TV Stations
- Film Studios
- Conference facilities
- Auditoria
- Training rooms
- Education facilities – schools, universities, colleges
- Boardrooms
- Offices
- Hospitals
- Laboratories
- Places of worship
- Community facilities
- Residential homes
- Bamboo
- MDF sealed
- Formica finishes
- Valcromat
- Marine Ply – for exteral finishes 1.2mm glavanised steel – for fire side 430 grade Stainless steel ridgidized 5WL or 6WL – for fire side
- Glass (only VK62)
- Aluminium treadplate sheet – only for utility doors
Natural wood veneers: Maple, Beech, Cherry, Etimoe, Kiaat, Mahogany, Oak, Rosewood, Walnut, Wenge (stains, waxes and oils can also be applied)
NOTE: Owing to the processes of nature, colour samples may differ considerably from the original. Should you want to match an existing colour, we recommend staining to a sample.
Melawood finishes include
Special requirements can be accommodated. Please contact us for your design needs.
Aluglass Bautech Varikust®
(please select above what system you are interested in)
VK ___________(single /double) door , ______________mm high x _____________mm wide, comprising of extruded aluminium door frame – anodised Nat with ________________________ (natural wood veneer, supawood, formica, marine ply, or glass-only VK62) finish. The door requires a steel frame (to be installed by Aluglass Bautech® / not to be installed by Aluglass Bautech®) and has a fire rating of _______ minutes (finishes of fire side include: 1.2mm galvanised steel / 430 grade stainless steel rigidized 5WL). A viewing panel _________mm high x _________mm wide to be included.
For the Varikust® Acoustic FIRE Doors Specification Text – please click here!
