Is NOISE a major distraction? Is it demotivating your employees and impacting their productivity?
NOISE can make spaces less attractive, sending customers elsewhere with their business.
Glassflex® GF Serene is the ideal acoustic demountable glass partition system, to create quiet office spaces within open plan applications. Quick and easy to install, remove and re-install with modular glass elements and flexible frame components.
Uncertain about different Acoustic Ratings and what they mean? Read all about it in our blog “Understanding Acoustic Ratings: STC vs Rw vs DnTw”.
- Acoustic rating from DnTw 32dB to 45dB
- Max height up to 2900mm
- Permits flexible space layouts
- Allows privacy in each room by using a COMPLETE ACOUSTIC SYSTEM:
- Correct glass specification plus
- Engineered frame plus
- the best acoustic door.
- Integrates directly with the Aluglass Bautech Varikust® VK62 acoustic doors and Variflex® VX83 mobile acoustic walls
- 180 deg glass to glass joints are dry joined with a transparent VHB joining tape (not wet siliconed)
Glassflex Serene GFS32
- 32dB in situ acoustic insulation performance
- Partition system height – maximum: 2650mm
- recommended acoustic door:
- VK47 acoustic door
- maximum height: 2400mm
Glassflex Serene GFS35
- 35dB in situ acoustic insulation performance
- Partition system height – maximum: 3100mm
- recommended acoustic door:
- VK62 acoustic door
- maximum height: 2700mm
Glassflex Serene GFS43
- 43dB in situ acoustic insulation performance
- Partition system height – maximum: 2900mm
- recommended acoustic door:
- VK62 acoustic door
- maximum height: 2700mm
Glassflex Serene GFS45
- 45dB in situ acoustic insulation performance
- Partition system height – maximum: 2900mm
- recommended acoustic door:
- VK62 acoustic door
- maximum height: 2700mm

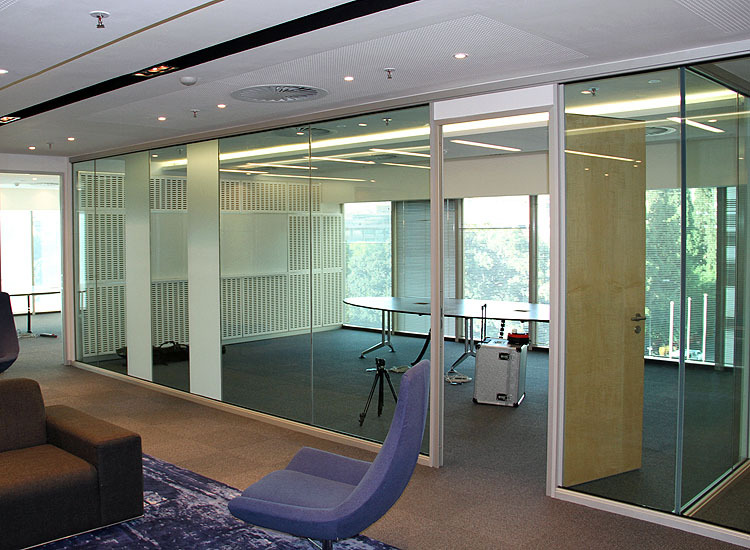

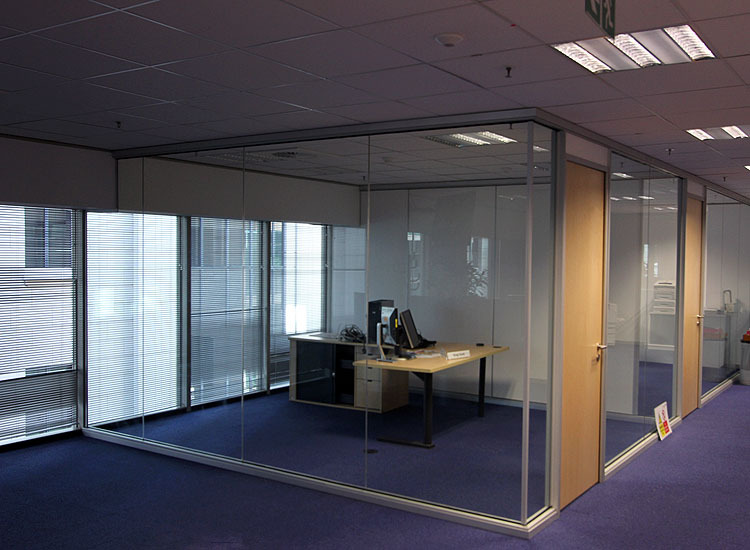

- Deutsche Bank
- Aecom

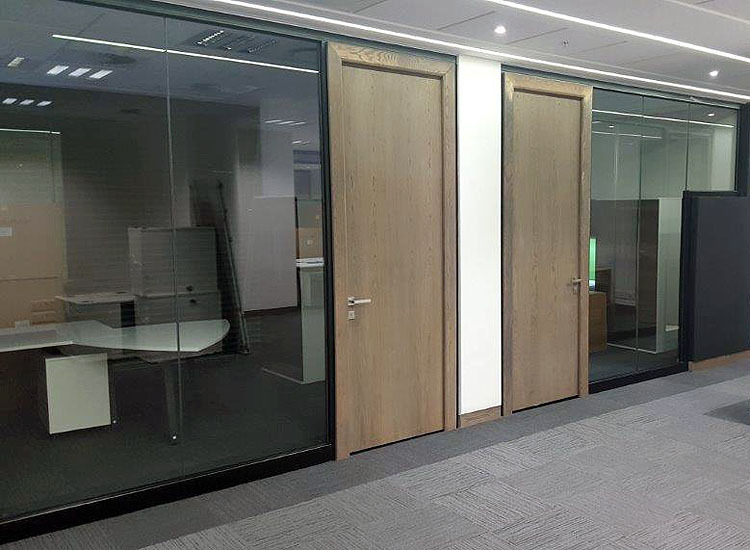

- Allen and Overy

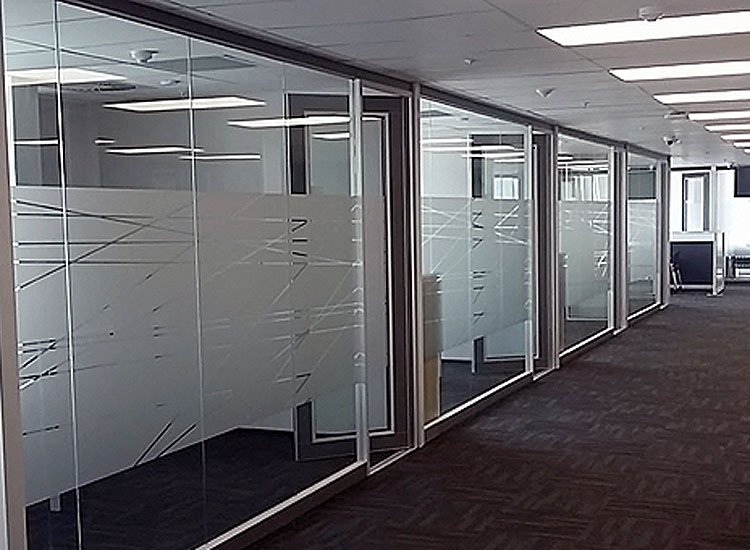

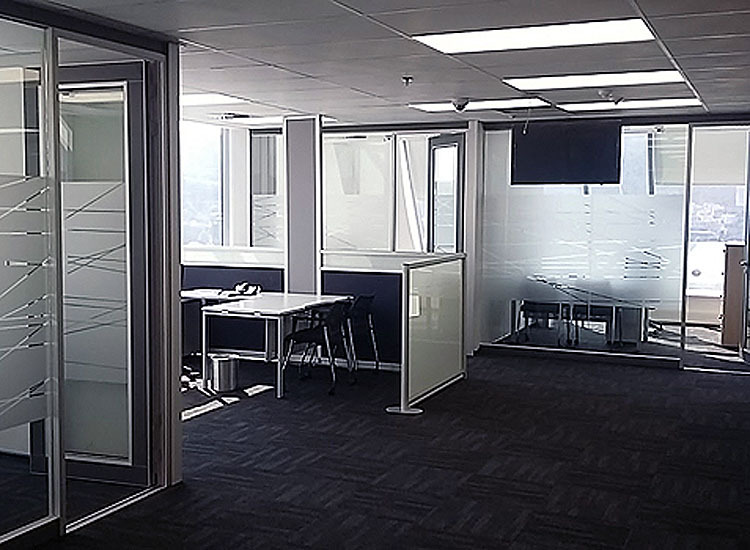

- Liberty Offices Bruma
- Majantsipe Project Managers – Klerksdorp
- BP South Africa
- Avani Hotel & Casino – Windhoek, Namibia
- Accenture Waterfall Park
- Private Residence Western Cape
- Investec – 100 Grayston Drive
- JP Morgan
- Radisson Red Rosebank
- SANBS KZN
- Standard Chartered Bank
- Special Steels
- Anglo 144 Oxford Road
and many more…..
- Open plan offices
- Office partitioning
- Conference and Meeting rooms
- Hotels
- Telephone booths for confidential discussions
- Residential acoustic room partitioning
Understanding noise
Acoustic rating selection table
Glass
- specification according to dB rating required
- decorative treatments such as sandblasting and decal applications optional
Aluminum extrusions
- available in standard colours:
- natural or bronze anodized
- white powder coated
- other colours available on request
Door surface finishes
- real wood veneers
- glass or
- other finishes
Aluglass Bautech ® Glassflex® GF SERENE (GFS32 / GFS35 / GFS43 / GFS45) demountable and relocatable acoustic partitioning, ______________________mm high (max 2900mm floor to u/s ceiling) x __________________mm wide, has a (32dB /35dB / 43dB / 45dB) acoustic rating.
Varikust® (VK47 / VK62 ) (single (max 900mm wide x 2700mm high) / double (max 1600mm x 2700mm high)) acoustic door in a ________________________ (glass, natural wood veneer, chipcore, supawood, formica, wallpaper painted by others, or as specified) finish will be integrated into the GF Serene system.
A Variflex® VX83 mobile acoustic partition ___________________mm high (max 3m floor to u/s ceiling) x __________________mm wide in a _______________________(natural wood veneer, chipcore, supawood,formica, wallpaper painted by others, or as specified) finish will be integrated into the GF Serene system.
Aluminium extrusions are to be (natural anodised / bronze anodised / white powder coated)___________________________(or as specified).
In-ceiling insulation treatment of ___________________mm high and floor space insulation treatment of ___________________mm high is needed.
_____________________________(sandblasted, decal application ) of or on decorative treatment of glass is required.
