Variflex® mobile acoustic partitions

Need flexibility and space optimisation?

Variflex® mobile acoustic partitions permit flexible room layouts and subdivide classrooms, film studios, meeting venues or conference facilities, only with an overhead track. Two or more areas can be used simultaneously without disrupting each other or a large area can be created with the individual elements being parked neatly to one side or into a niche. Having an acoustic rating range from DnTw = 40dB to 55dB (Please note: the updated acoustic sound level testing method is an in-situ measurement of the Standardised Level Difference according to ISO 162283-1 2014, analysed according to weighted Standardised Level Difference, DnTw, according to ISO 717-1) and a maximum height over 12m, Aluglass Bautech can assist most design requirements, fulfilling your acoustic needs.

  • Acoustic rating from DnTw = 40dB to 55dB
  • Max height up to 12m
  • Permits flexible room layouts
  • Subdivides meeting venues or conference facilities
  • Allows complete privacy in rooms
  • No floor track – only an overhead track
  • Elements are parked neatly to one side or into a niche
  • Automated horizontal seals available (electric drive operation)
  • Technical backup and international design standards
  • Assist at feasibility and design stage

Acoustic Overview - where noise travels between two rooms

Variflex® system layout

Variflex drawing with details



Element types

Variflex types of elements



Suspension details

suspension details without dB



Aluglass Bautech provides a variety of track and element parking arrangement. Below some examples, but other options are possible to satisfy customer requirements.

variflex parking layout examples

Variflex layout example making smaller rooms Curved Variflex example

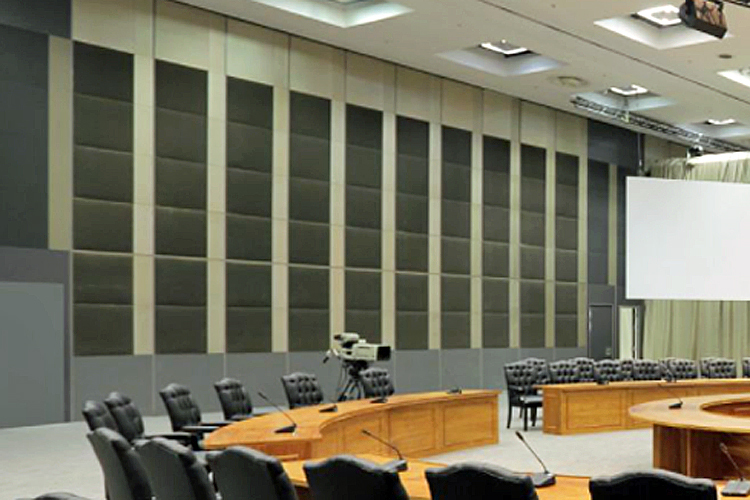

  • Sandton Convention Centre

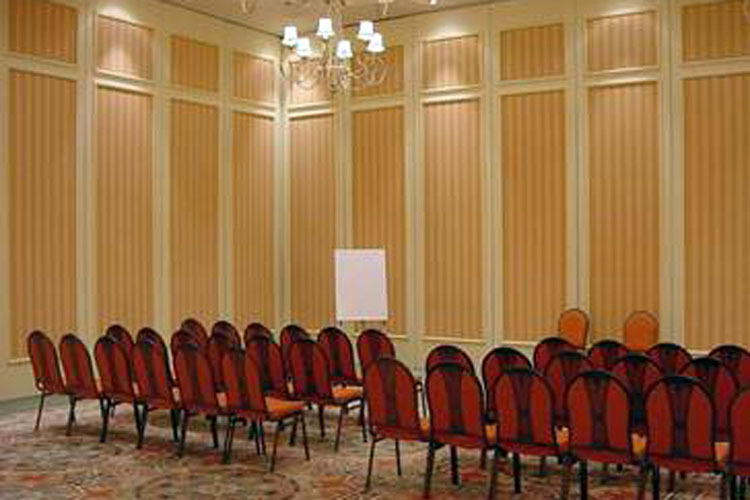

  • Gaborone Convention Centre

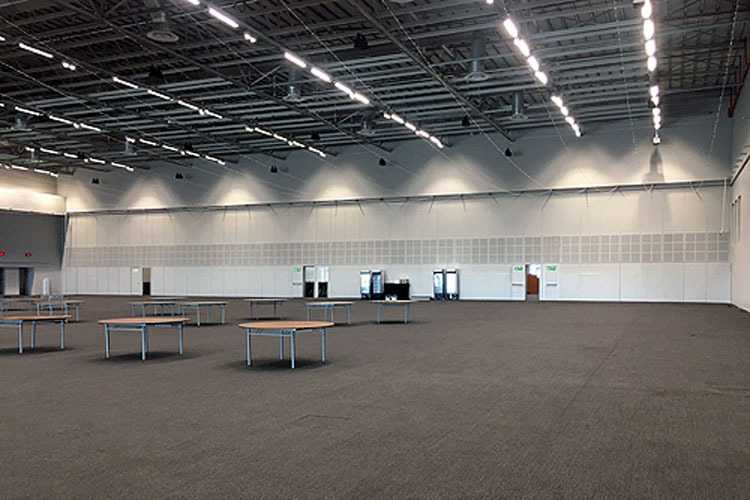

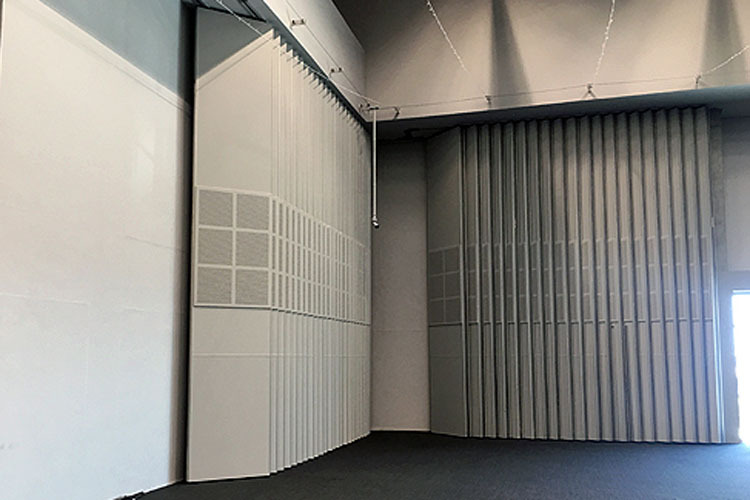

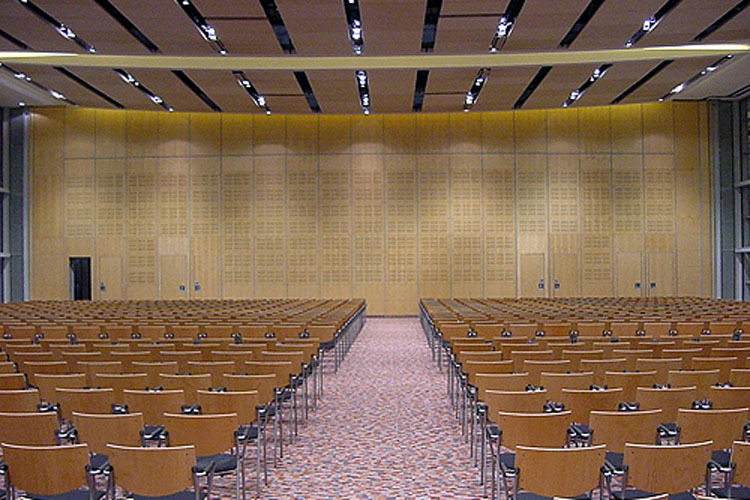

  • Cape Town Convention Centre

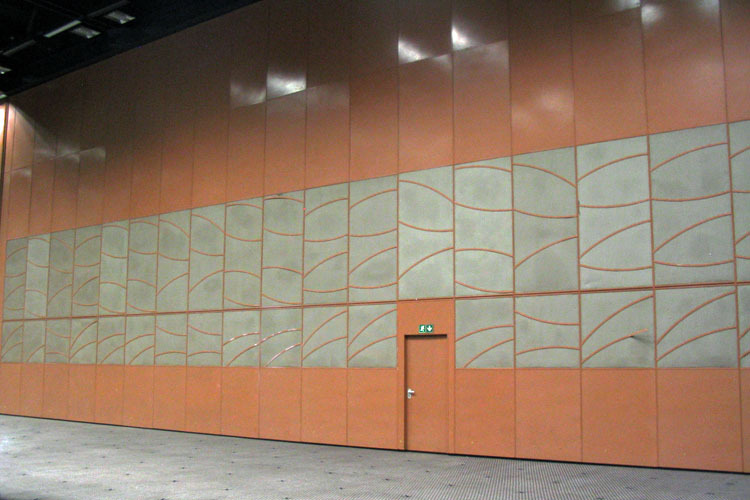

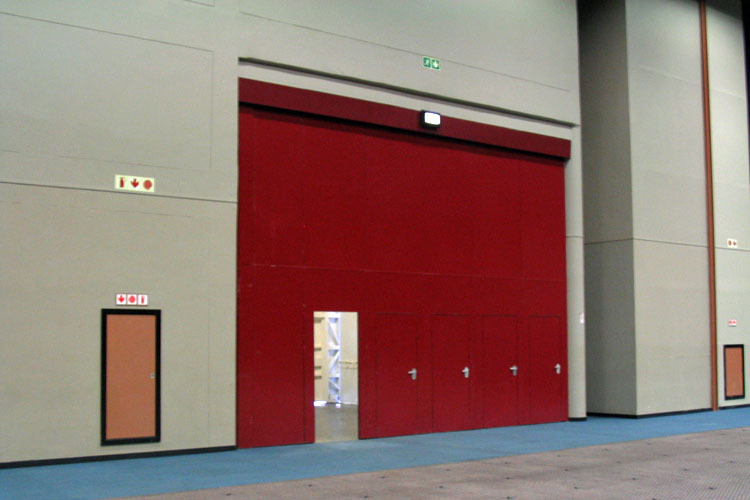

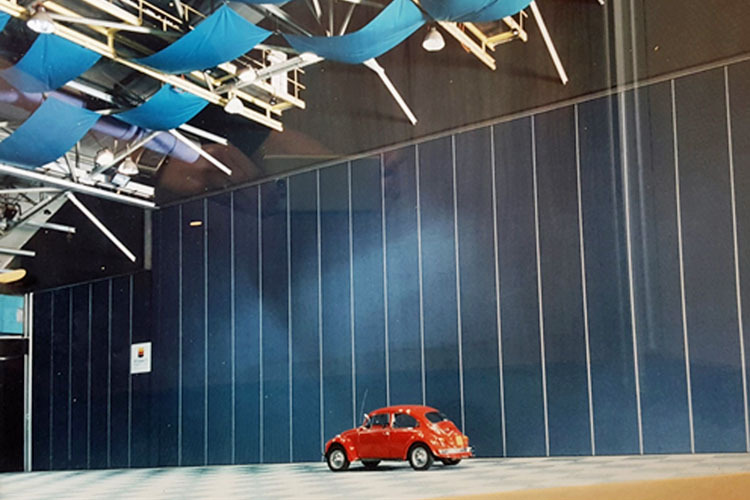

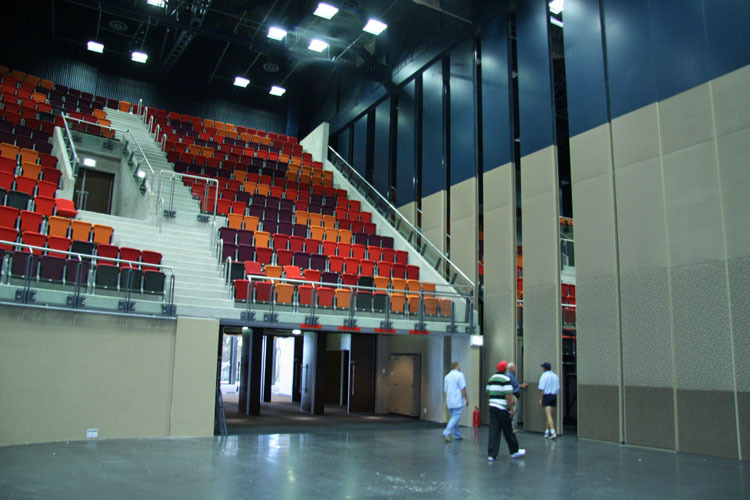

  • International Convention Centre Durban – Phase 1, 2 And Refurbishment
  • Department Of International Relations And Cooperation (Dirco)

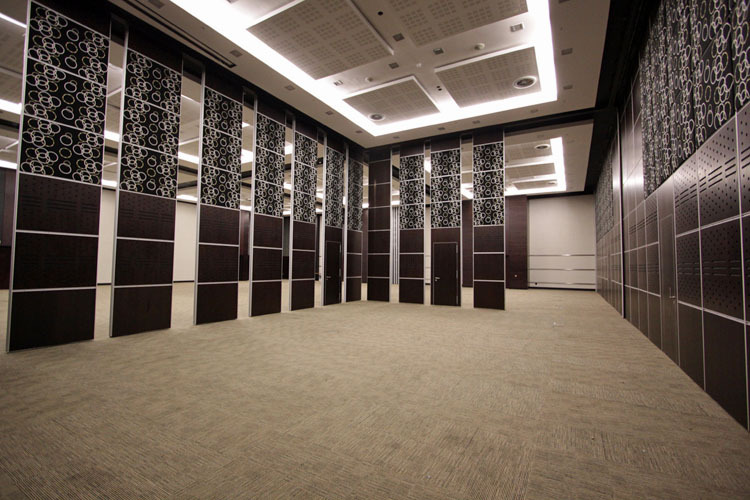

  • East London Convention Centre
  • Turbine Square

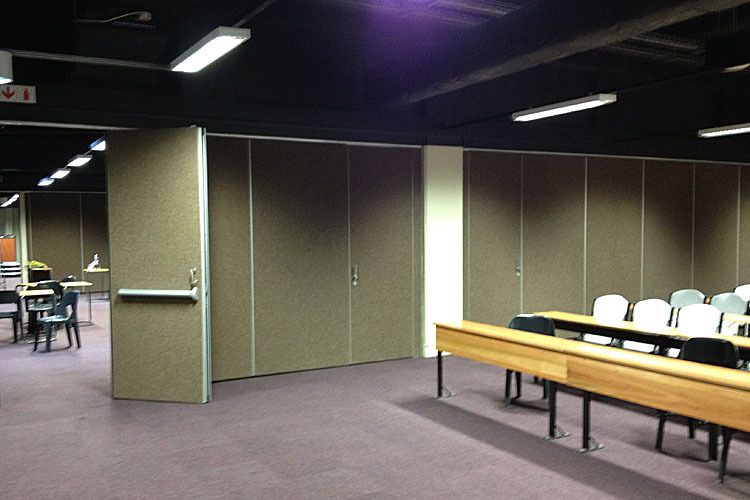

  • University Of Johannesburg

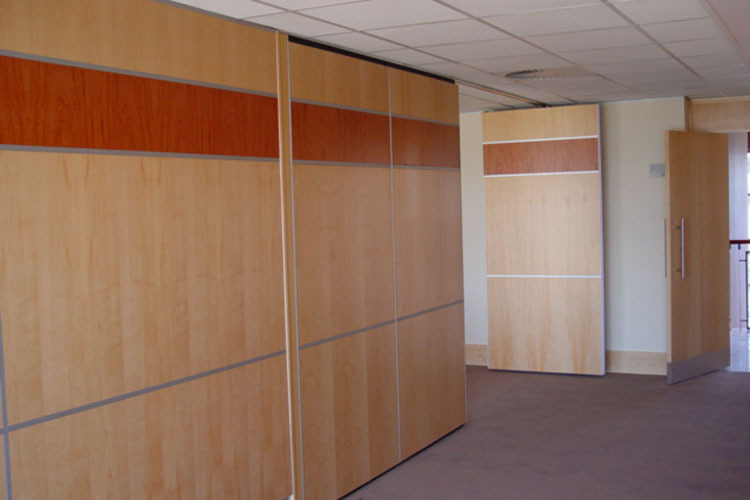

  • Absa Bank
  • BHP Billiton

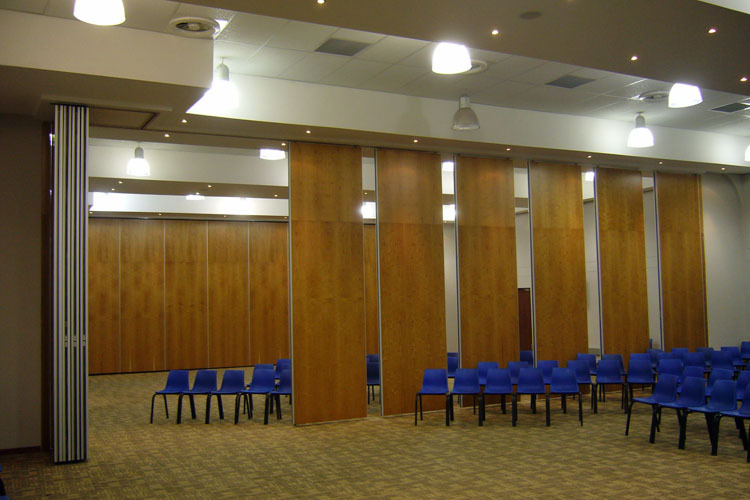

  • Ellispark
  • Innovation Hub

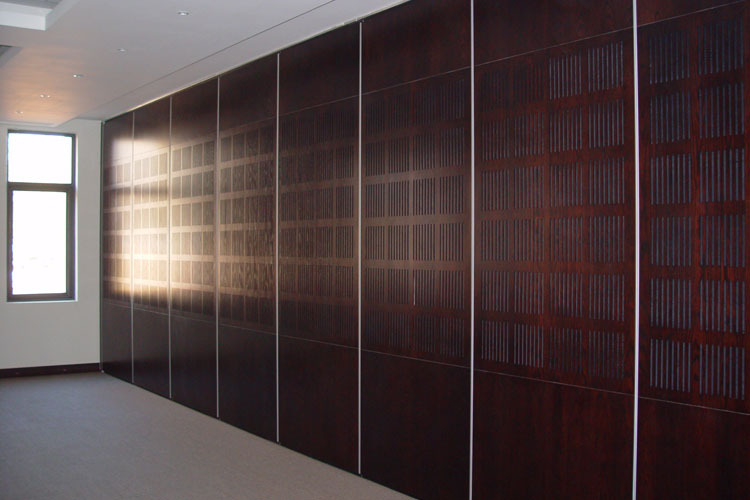

  • Microsoft
  • Nedbank Menlyn Main
  • Swakopmund Hotel Namibia
  • Windhoek Country Club

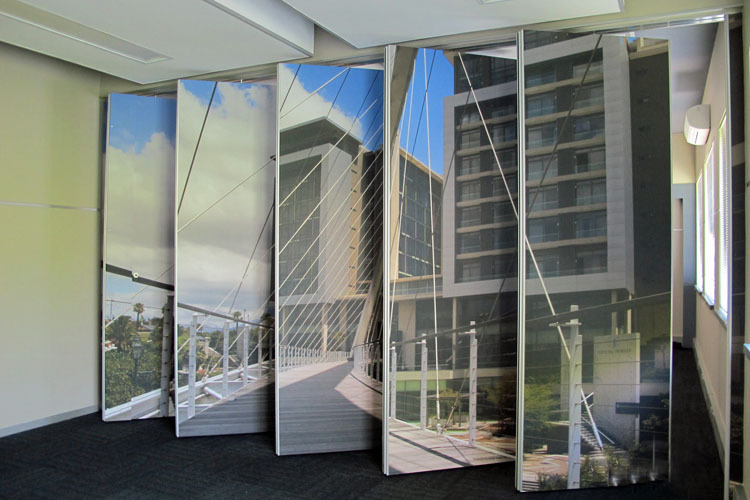

  • US Civil Engineering – Stellenbosch University
  • Tuinhof Centurion
  • Project Dräger
  • Skyrink Studios Johannesburg

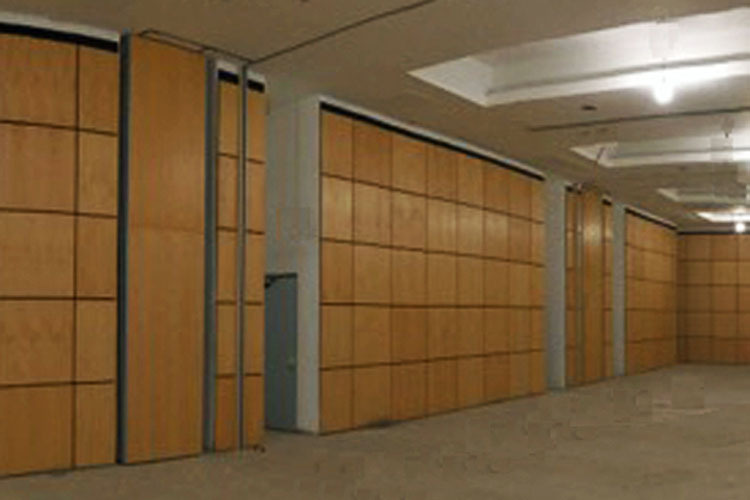

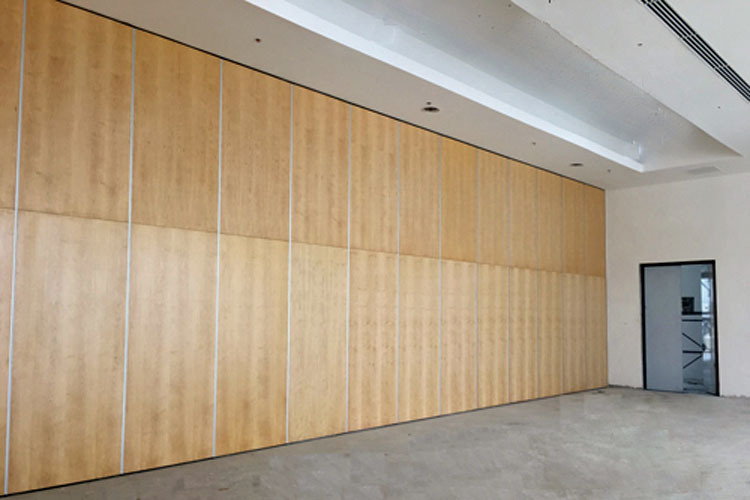

  • Marriott Hotel Ghana
  • Cape Town Film Studios
  • Broadhurst Magistrate Court Botswana

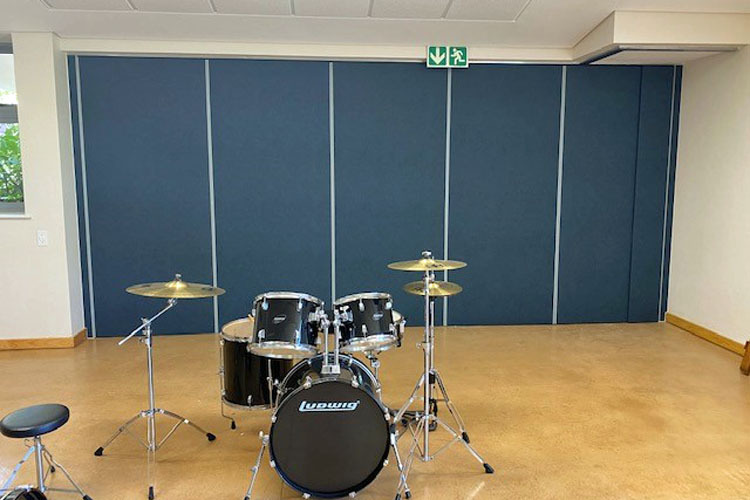

  • Springfield Convent Music School (Incl Sound Test Video)
  • Merck Offices Longmeadow

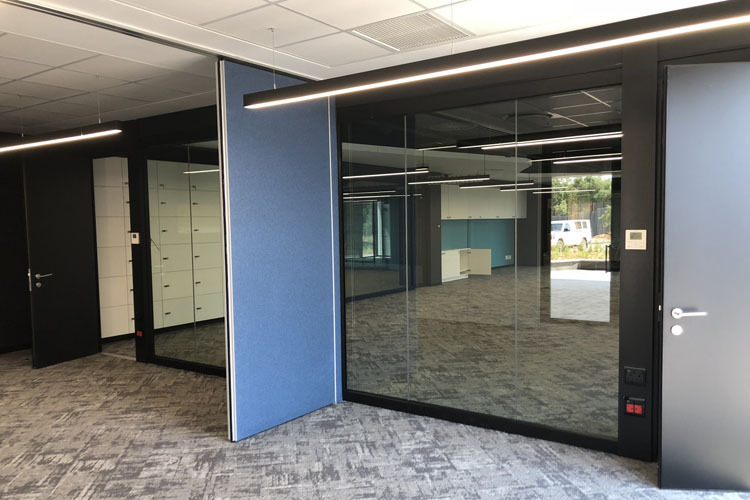

  • Accenture Waterfall Park Johannesburg
  • BP South Africa Oxford Park
  • Sappi Illovo Johannesburg
  • North West Province Legislature
  • Tshwane House

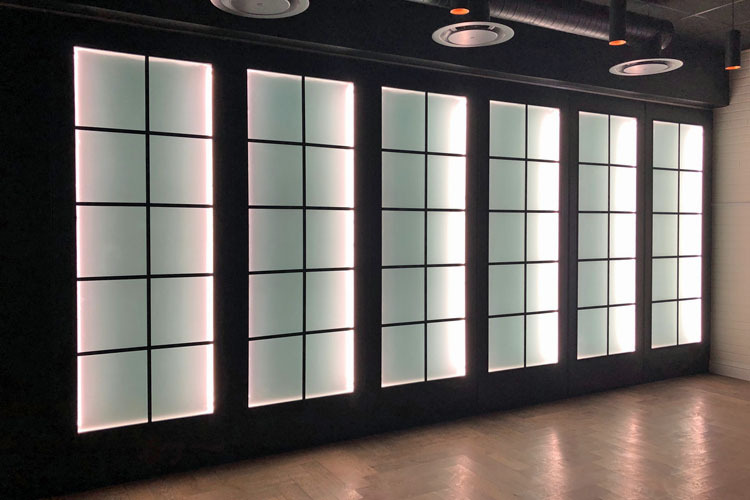

  • Am Weinberg Boutique Hotel Namibia – New Variflex® Glass!
  • Exxaro Head Office Centurion
  • Variflex® At Private Residential At Blair Atholl
  • Zenprop Focus Rooms

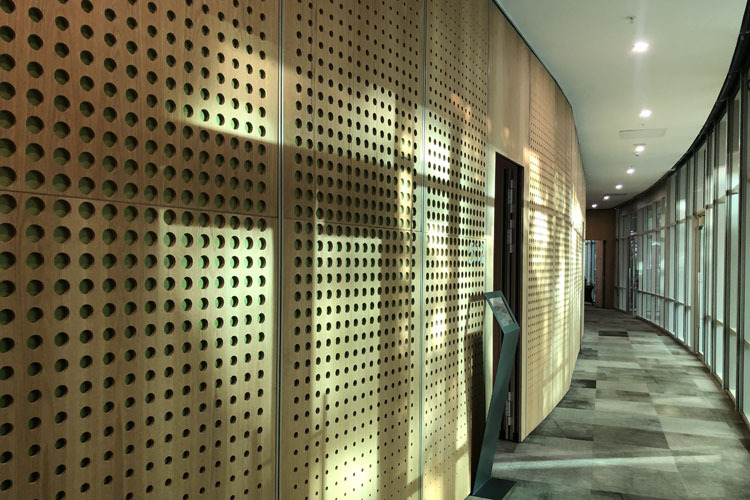

  • Old Mutual Limited Sandton
  • Umhlanga Ridgeside & Multiply Offices – Variflex® Glass

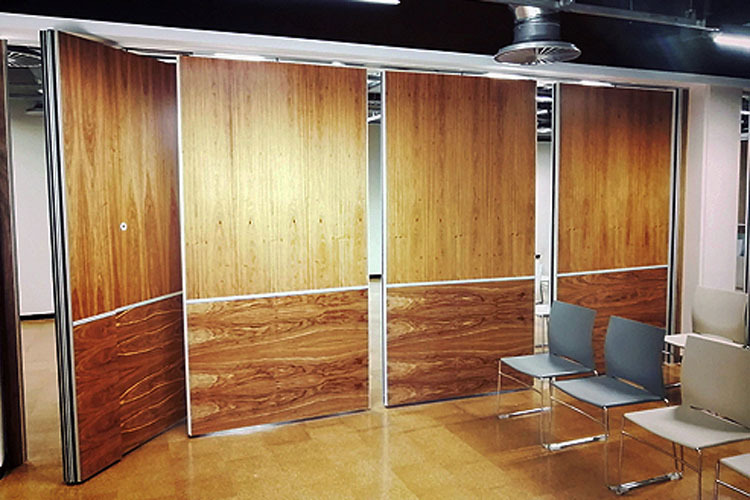

  • The Wartenweiler Library – Wits
  • The Trans Caledon Tunnel Authority

and many more…..

  • Conference facilities
  • Auditoria
  • Training rooms
  • Education facilities – schools, universities, colleges
  • Boardrooms
  • Offices
  • Hospitals
  • Laboratories
  • Places of worship
  • Community facilities

Understanding noise

Understanding noise and dB ratings



Acoustic rating selection table

Acoustic rating selection table



What Variflex® system to use?

The updated acoustic sound level testing method is an in-situ measurement of the Standardised Level Difference according to ISO 162283-1 2014, analysed according to weighted Standardised Level Difference, DnTw, according to ISO 717-1.



Which Variflex system?

  • Fabric – any upholstery weight with a min. width of 1400mm
  • Wallpaper – with a min. width of 1400mm wide
  • Laminate surfaces
  • Velcromat
  • melawood frames with glass inserts
  • MDF – sealed or painted
  • Marine ply – external applications
  • Integrated magnetic white boards or pin boards
  • Integrated absorption panels to assist with sound absorption

Natural wood veneers: Maple, Beech, Cherry, Etimoe, Kiaat, Mahogany, Oak, Rosewood, Walnut, Wenge (stains, waxes and oils can also be applied)

NOTE: Owing to the processes of nature, colour samples may differ considerably from the original. Should you want to match an existing colour, we recommend staining to a sample.




Melawood finishes include

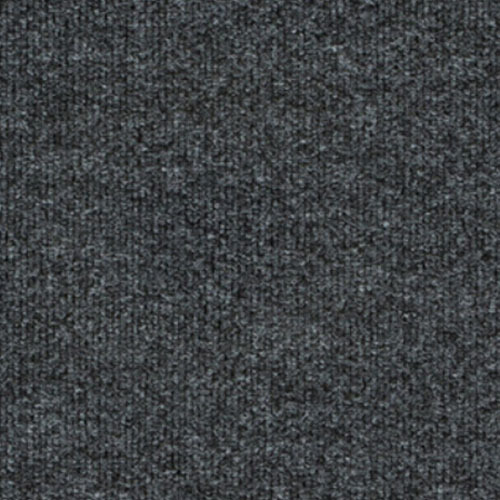

Carpet sample series

!NB! Please ensure an actual sample is viewed when selecting a colour as colour and texture will vary.


Special requirements can be accommodated. Please contact us for your design needs.

VX83

Aluglass Bautech Variflex® VX83 mobile acoustic (operable wall) partition, _________mm width x _________mm high to suit structural opening size __________mm width x ________mm high, comprising 83mm thick tongued and grooved acoustically decoupled 40dB / 45dB / 49dB [DnTw = 40dB to 55dB (in-situ measurement of the Standardised Level Difference according to ISO 162283-1 2014, analysed according to weighted Standardised Level Difference, DnTw, according to ISO 717-1)] rated panels with ________________________ (veneer, fabric, chipcore, marine ply, supawood, wallpaper or carpet) finish, with mechanically retractable top and bottom seals and vertical seals formed of aluminium extrusions with lip seals and magnetic strips, panels suspended at (one roller trolley / two roller trolley) per panel on track with ball bearing and/or thrust rollers with track bolted to suspension plates in turn bolted to (concrete / timber / steel) support structure and __________mm high bulkhead fitted to and above track in ceiling void. Panels are to park (crosswise under track / U-parking) with panels stacking (one side / two sides).



VX110

Aluglass Bautech Variflex® VX110 mobile acoustic (operable wall) partition, _________mm width x _________mm high to suit structural opening size __________mm width x ________mm high, comprising 110mm thick tongued and grooved acoustically decoupled 47dB / 50dB / 52dB [DnTw = 40dB to 55dB (in-situ measurement of the Standardised Level Difference according to ISO 162283-1 2014, analysed according to weighted Standardised Level Difference, DnTw, according to ISO 717-1)] rated panels with ________________________ (veneer, fabric, chipcore, marine ply, supawood, wallpaper or carpet) finish, with mechanically retractable top and bottom seals and vertical seals formed of aluminium extrusions with lip seals and magnetic strips, panels suspended at (one roller trolley / two roller trolley) per panel on track with ball bearing and/or thrust rollers with track bolted to suspension plates in turn bolted to (concrete / timber / steel) support structure and __________mm high bulkhead fitted to and above track in ceiling void. Panels are to park (crosswise under track / U-parking) with panels stacking (one side / two sides).



Raked VX110

Aluglass Bautech Variflex® VX110 mobile acoustic (operable wall) partition to divide raked auditoria, size ___________mm x (____________mm to ________mm, highest to lowest) to suit structural opening size ____________mm x (__________ mm to _____________mm, highest to lowest), comprising individual 1000mm wide, 110mm thick tongued and grooved acoustically decoupled 50dB [DnTw = 40dB to 55dB (in-situ measurement of the Standardised Level Difference according to ISO 162283-1 2014, analysed according to weighted Standardised Level Difference, DnTw, according to ISO 717-1)] rated panels with ____________________finish, with mechanically retractable top and bottom seals and vertical seals formed of aluminium extrusions with lip seals and magnetic strips, panels suspended at two roller trolleys per panel on track with ball bearing rollers with track bolted to suspension plates in turn fixed to concrete support structure and _____________ mm wide x _____________ mm high acoustic baffle/bulkhead to matching acoustic rating of the panels fitted to and above track in ceiling void. Panels are to park U-parking to two sides with panels stacking perpendicular to the main track. The tongue profile would receive a corner block adaptation to key into the corner block of the next element to ensure a continuous acoustic seal between the panels from step to step. Absorptive treatment to the panels to be integrated into the system to minimise parking stack depth.



VX164

Aluglass Bautech Variflex® VX164 mobile acoustic (operable wall) partition, _________mm width x _________mm high to suit structural opening size __________mm width x ________mm high, comprising 164mm thick tongued and grooved acoustically decoupled 52dB / 55dB [DnTw = 40dB to 55dB (in-situ measurement of the Standardised Level Difference according to ISO 162283-1 2014, analysed according to weighted Standardised Level Difference, DnTw, according to ISO 717-1)] rated panels with ________________________ (veneer, fabric, chipcore, marine ply, supawood, wallpaper or carpet) finish, with mechanically retractable top and bottom seals and vertical seals formed of aluminium extrusions with lip seals and magnetic strips, panels suspended at (one roller trolley / two roller trolley) per panel on track with ball bearing and/or thrust rollers with track bolted to suspension plates in turn bolted to (concrete / timber / steel) support structure and __________mm high bulkhead fitted to and above track in ceiling void. Panels are to park (crosswise under track / U-parking) with panels stacking (one side / two sides).

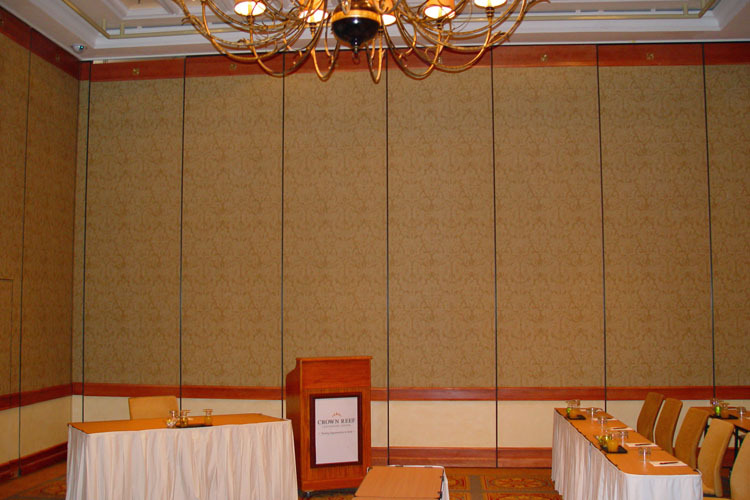

Variflex® at Exhibition and Convention Centres

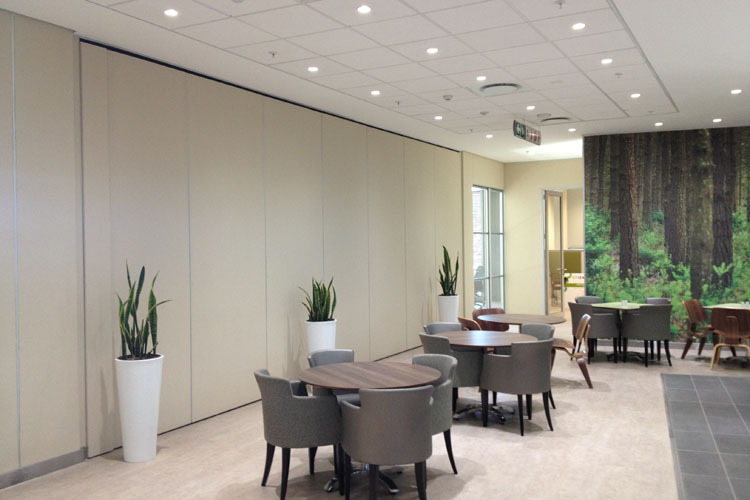

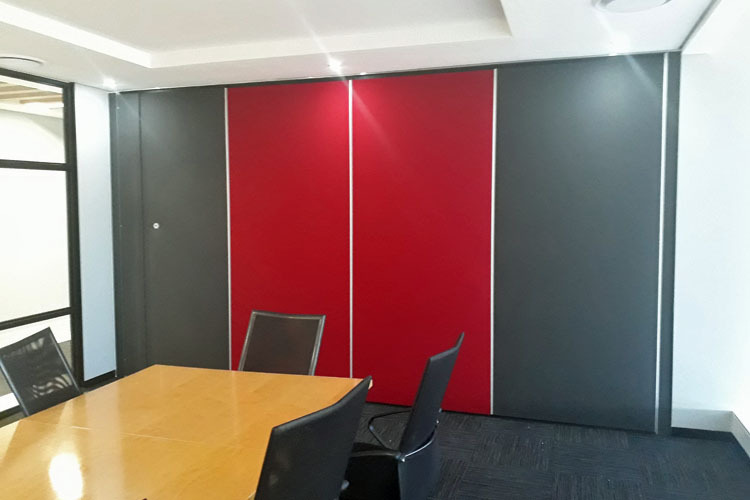

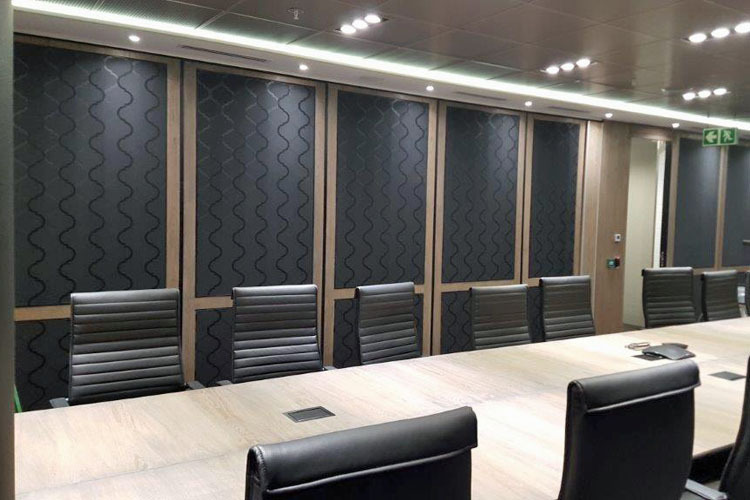

Variflex® at Corporate Offices

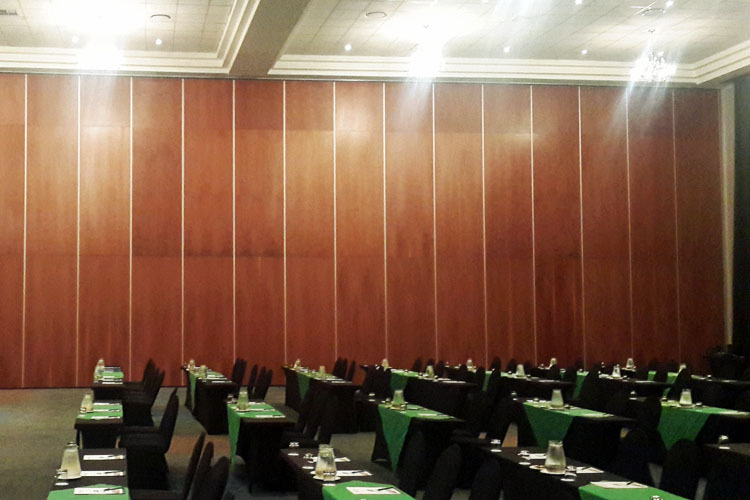

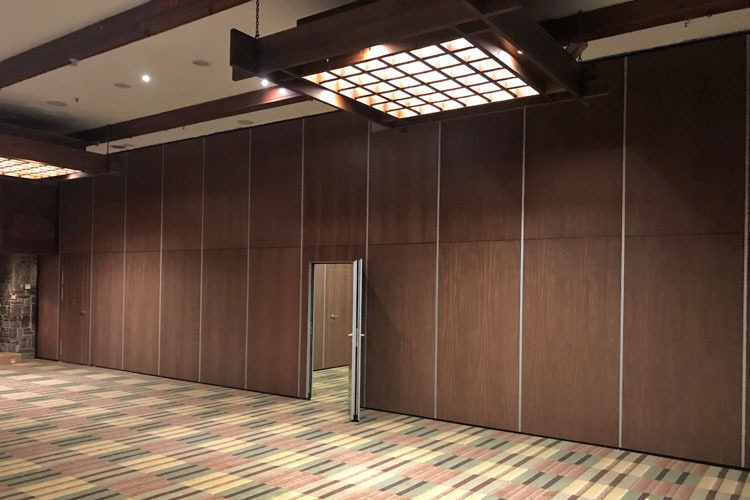

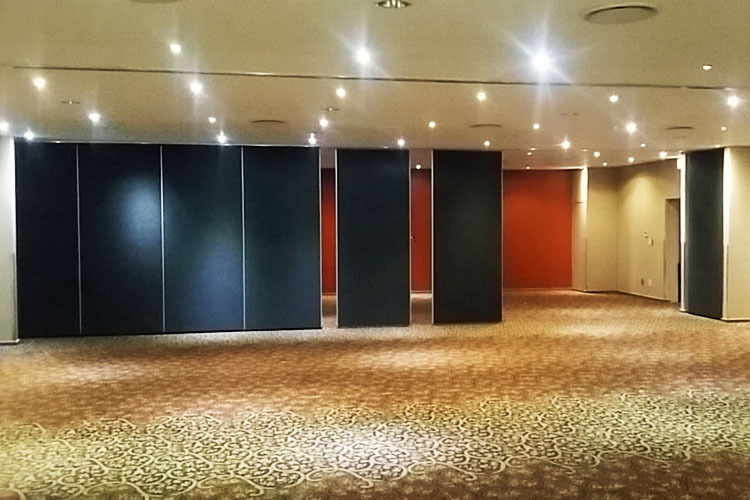

Variflex® at Hotels

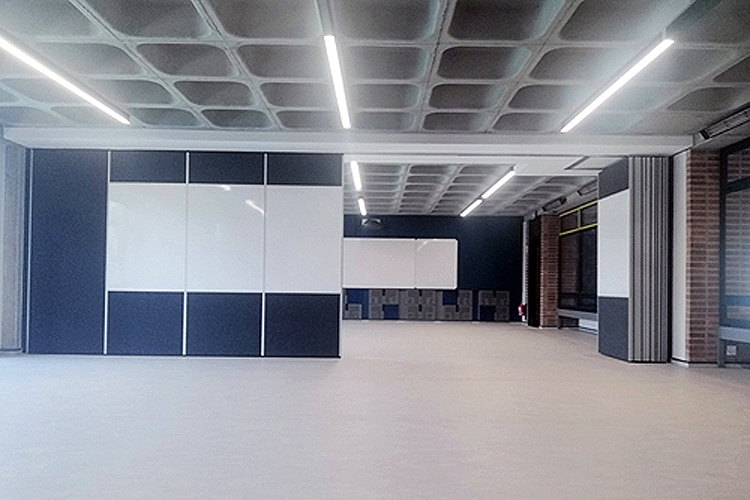

Variflex® at Education & Training Facilities
