Product specified:
- 2 GF Serene 35dB 9300mm x 3000mm finished with black Melawood top and bottom skirtings
- 5 Varikust® VK62 35dB 900mm x 2700mm acoustic single doors finished with painted MDF
- 3 Variflex® VX83 40dB mobile acoustic partitions double suspension with a Weavers World Vulcan screen fabric – slate colour (U-parking into offset niche)
Masingita Towers is an Apartment Building in the heart of Sandton.
Aluglass Bautech is proud to have installed an ACOUSTIC TREATMENT SOLUTION combining three acoustic products for the Masingita Towers Conference Facility.

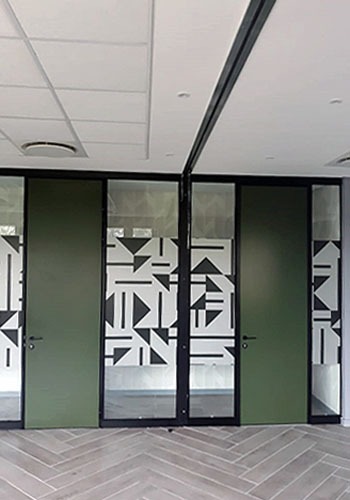

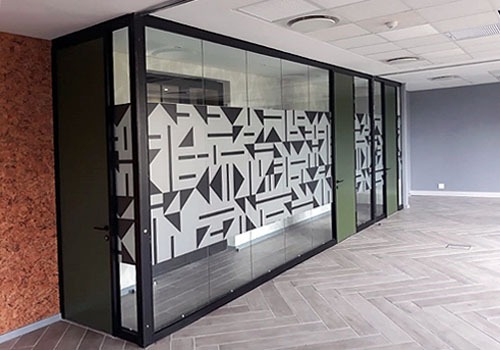

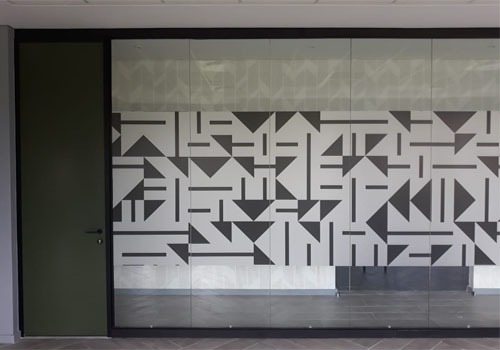

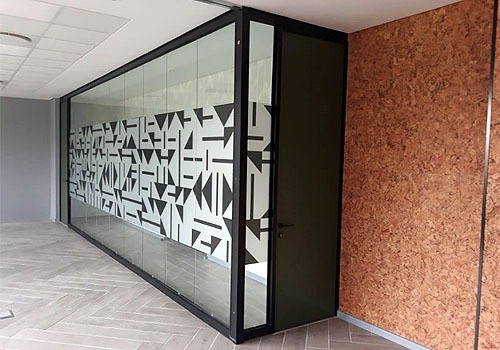

The products chosen include 2 GF Serene acoustic de-mountable partition systems with a height of 3 meters and a length of 9.3 meters. This is the ideal acoustic internal glass partitions system, to create quiet office spaces or meeting rooms within open plan applications. An acoustic rating of 35dB was specified with black Melawood top and bottom skirtings. This versatile system is quick and easy to install, remove and reinstall with modular glass elements and flexible frame components. By using 1200mm modular panels with extra make-up panels, the system can be relocated in a new position.

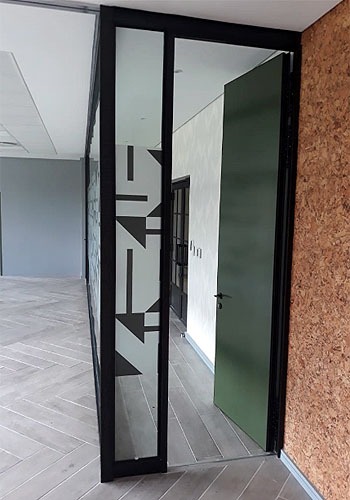

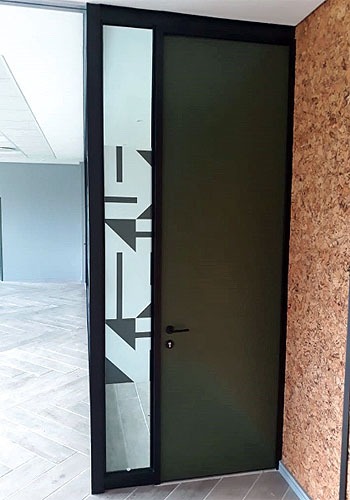

The GF Serene system integrates directly with the Aluglass Bautech’s Varikust® VK63 acoustic door, which provides sound insulation of 35dB. The 5 specified doors are all single door configurations with a width of 900mm and a height of 2700mm. The black painted MDF finish suits the Masingita décor and design.
To complete the ACOUSTIC TREATMENT SOLUTION, 3 Variflex® mobile acoustic partitions were installed as seen in the drawing. This partition system permits flexible room layouts and subdivides the conference facilities, only with an overhead track. Two or more areas can be used simultaneously without disrupting each other or a large area can be created with the individual elements being parked neatly into a niche. The partition walls have an overall length of just under 15 meters and a height of 3m. The individual elements are finished with a Weavers World Vulcan screen fabric in a slate colour.
Aluglass Bautech will gladly assist with design requirements whilst fulfilling most acoustic needs. CONTACT US TODAY for your customised solution!
